Screw it Right: Mastering the Art of Wedge Anchors for Strong and Reliable Connections

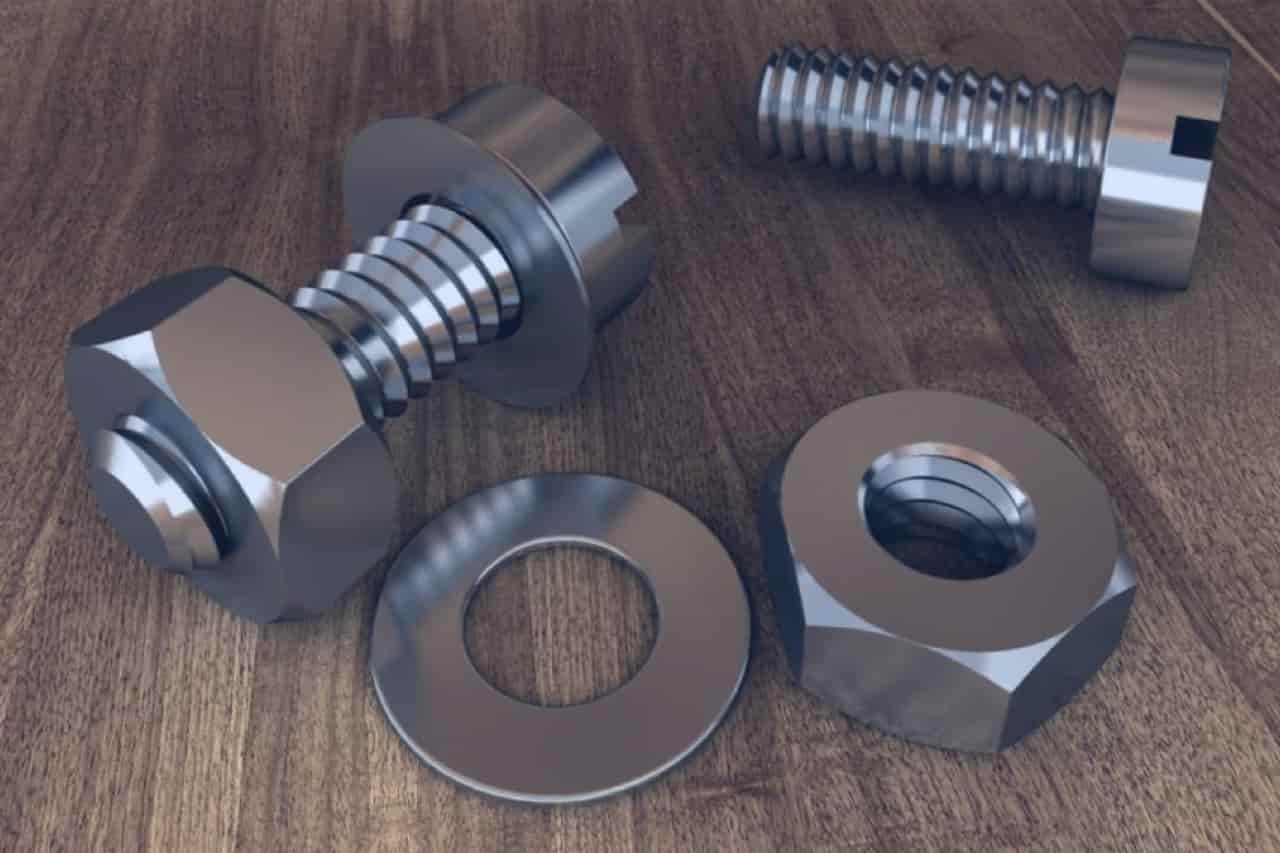

featured image

Mar 8, 2024

In construction and engineering, ensuring strong and reliable connections is paramount to the integrity and safety of structures. One of the key components in achieving this is mastering the art of wedge anchors. These anchors provide robust fastening solutions for various materials, ranging from concrete to masonry and beyond.

The Role of Wedge Anchors

Wedge anchors play a crucial role in creating secure connections by expanding within the base material, providing a tight grip and distributing loads evenly. Mastering the art of using wedge anchors ensures that connections remain strong and reliable, even under challenging conditions.

Understanding Wedge Anchors

Wedge anchors are mechanical fasteners designed to secure objects to concrete, masonry, or other solid materials. They consist of a threaded rod, a cone-shaped expansion nut, and a sleeve. When tightened, the expansion nut wedges against the walls of the pre-drilled hole, creating a secure attachment.

Types of Wedge Anchors

Wedge anchors come in various types, each designed to meet specific application requirements. Common variations include stainless steel, galvanized, and zinc-plated anchors, catering to different environmental conditions and load capacities. Understanding the mechanical properties and material compositions is crucial in selecting the appropriate anchor for a project.

Applications and Advantages

Wedge anchors find applications across diverse industries, including construction, manufacturing, and infrastructure development. They offer several advantages, such as ease of installation, high load-bearing capacity, and corrosion resistance. From securing heavy equipment to anchoring structural components, wedge anchors provide reliable solutions for various projects.

Preparing for Installation

Before proceeding with installation, it’s essential to assess the project requirements, including load capacities, environmental factors, and substrate conditions. Understanding these variables helps select the right type and size of wedge anchors for the job. Using a wedge anchor size chart can help in choosing the correct wedge.

Gathering Necessary Tools and Materials

Gather all necessary tools and materials in advance to ensure a smooth and efficient installation process. This may include a hammer drill, appropriate drill bits, safety equipment, and wedge anchors. Having everything readily available minimizes downtime and ensures precision during installation.

Safety Precautions and Guidelines

Safety should always be a top priority when working with wedge anchors or any construction-related activities. Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection. Follow manufacturer guidelines and recommended practices to prevent accidents and ensure a safe working environment.

Installation Techniques

Prepare the installation site by clearing any debris or obstructions hindering the drilling process. Mark the drilling locations accurately using a pencil or marker, ensuring proper alignment and spacing between anchors. Consider factors such as the depth and diameter of the holes based on the anchor specifications.

Drilling Procedures

Use a hammer drill with a carbide-tipped masonry bit to drill the holes to the required depth and diameter. Ensure that the drill is set to the appropriate speed and hammering action for the material being drilled. Remove dust and debris from the holes using a vacuum or compressed air to facilitate proper anchor insertion.

Inserting and Setting the Anchor

Insert the wedge anchor into the pre-drilled hole, ensuring that the threaded portion protrudes above the surface to accommodate the secured fixture or object. Use a wrench or socket wrench to tighten the nut, causing the anchor to expand and grip the surrounding material firmly. Avoid over-tightening, as it may compromise the integrity of the anchor or damage the substrate.

Techniques for Different Materials

The installation techniques for wedge anchors may vary depending on the substrate material, such as concrete, masonry, brick, or stone. Follow manufacturer recommendations and industry best practices for each specific material to ensure optimal performance and reliability of the anchors.

Troubleshooting Common Installation Issues

Despite careful planning and execution, installation issues may arise, such as improper alignment, insufficient depth, or over-tightening of the anchor. Recognizing and addressing these issues promptly helps prevent potential failures and ensures the integrity of the connections.

Factors Affecting Anchor Performance

The load capacity of wedge anchors depends on various factors, including anchor size, material composition, and installation technique. Understanding the load requirements and tension forces acting on the anchors is essential in selecting the appropriate anchor size and type to withstand the applied loads effectively.

Environmental Considerations

Environmental factors such as temperature variations, moisture levels, and chemical exposure can affect the performance and longevity of wedge anchors. Choose anchors with appropriate corrosion resistance properties for outdoor or high-moisture environments to prevent degradation and ensure long-term reliability.

Quality Control and Inspection

Regular inspection and quality control measures are essential to ensure the integrity and performance of installed wedge anchors. Conduct periodic inspections to check for signs of corrosion, degradation, or loosening of the anchors and take corrective actions as necessary to maintain the structural stability and safety of the connections.

Advanced Tips and Tricks

In certain applications, such as overhead installations or underwater environments, special considerations and techniques may be required to ensure wedge anchors’ proper installation and performance. Consult with industry experts or manufacturers for guidance on specialized applications and best practices.

Using Anchors in Seismic Zones

In seismic zones or areas prone to earthquakes, securing structures and equipment with robust fastening solutions is crucial to mitigate the risk of damage or collapse. Choose wedge anchors designed to withstand seismic forces and follow seismic design guidelines to enhance the structural resilience and safety of the installations.

Enhancing Durability and Longevity

To maximize the durability and longevity of wedge anchors, consider additional protective measures such as epoxy coatings, anti-corrosion treatments, or regular maintenance routines. Proper storage, handling, and installation practices also contribute to the overall performance and reliability of the anchors over time.


Mastering the art of wedge anchors is essential for creating strong and reliable connections in various construction and engineering applications. By understanding the mechanics, installation techniques, and factors influencing anchor performance, professionals can effectively enhance their skills and confidence in using wedge anchors.
